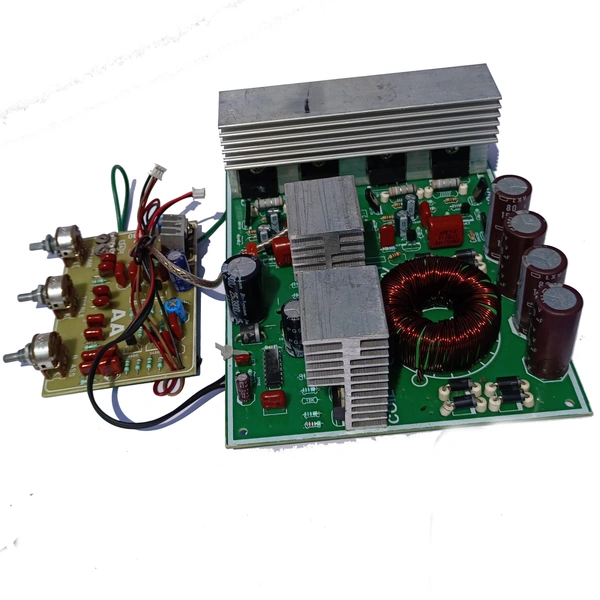

DC 12V 2×150W 4 MOSFET HI-FI 300W 2SC5200 2SC1943 STEREO AMPLIFIER BOARD KIT TOSHIBA MOSFET

Model -: DC77

Brand -: camart.in

Output Watt -: 300watt

Speaker -: 150Watt×2

Input voltage :- 12v-15V 10amp

Use component :- TOSHIBA MOSFET

Channel :- 2 Channel 150W×2

Item Dimension :-

Inside the box :- AMPLIFIER BOARD KIT

Manufacturing :- Camart.in India

Contact details -

Website -: camart.in

E-mail ID-: cscamart99@gmail.com

Contact number :-7983329453

Warning :- Do not use the without exhaust fan , never reverse connection , never Sort the wire

Features: Adopts two high quality Toshiba 2× 2sc5200 and 2× 2sc1943 transistor. Sound quality is very good, high efficiency and amplifying power. 150×2=300W 2 channels(left/right channel ), high efficiency and low-heat. Powered by DC 12-15V, wide input voltage. User can adjust the volume by themselves easily. Applicable speaker impedance: 4-8 ohm. Just connect the power supply and loudspeaker box, enjoy the pure digital music! Notice: This amplifier board must be powered by DC power ( DC12-15V ), it's better to use high-performance switch power. Use 12V Battery,12V SMPS,12V transformer 10AMP ,Specifications: Supply Voltage: DC 12-15V Toshiba 2sc5200 and 2sc1943 transistor Channels(Left Channel, Right Channel) Output Power: 150W×2=300W Output Match: 4-8 ohm Audio Output : Terminals Frequency Response Range: 14-100KHz SNR: 100dB Switching Frequency: 1.2MHz Package included: Toshiba 2sc5200 and 2sc1943 transistor. 2 Channel Audio Amplifier Board
